Forus Health 3nethra neo Retinal Imaging

The first truly Portable ROP Screening system. Wide-field Retinal Imaging at 120°.

Spectrum Arrow Unique LED-based illumination
Spectrum Arrow Innovative noiseless focusing
Spectrum Arrow Lightweight probe
ROP digital wide-field imaging system

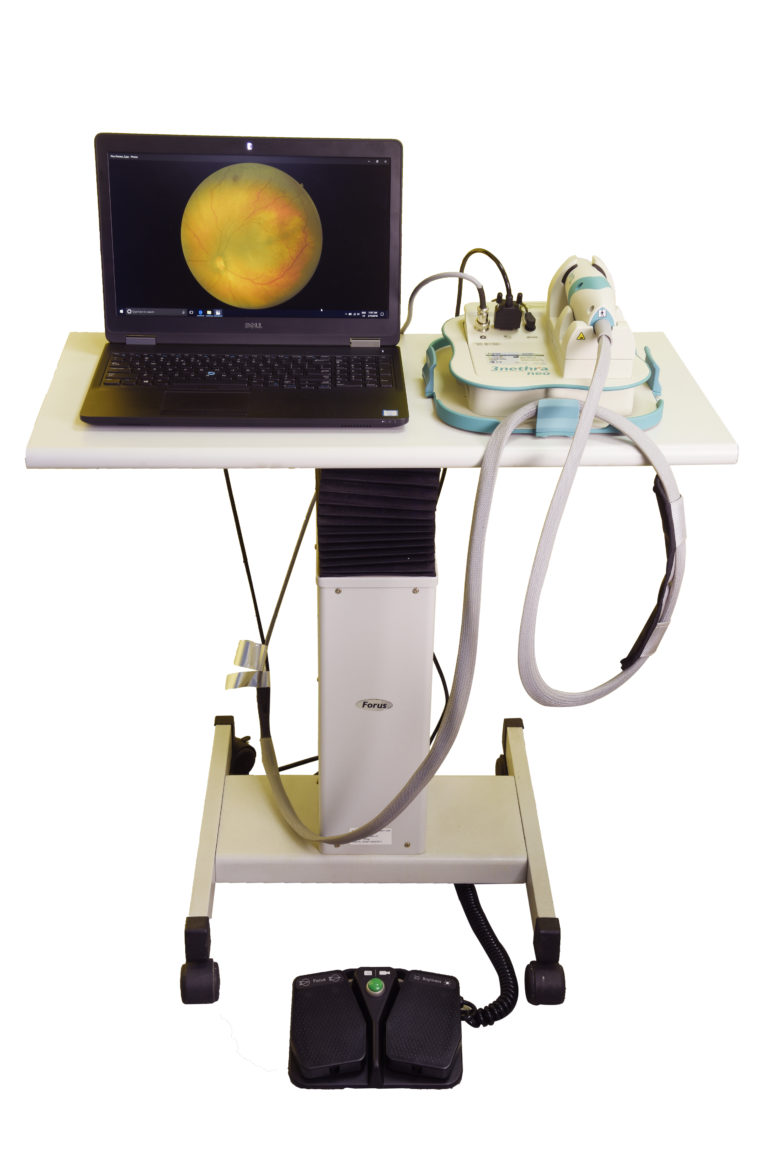

3nethra neo is a compact, portable, and easy-to-use mydriatic wide-field digital imaging system. It delivers high-resolution paediatric imaging for the photo documentation of ocular diseases that manifest in human eyes.

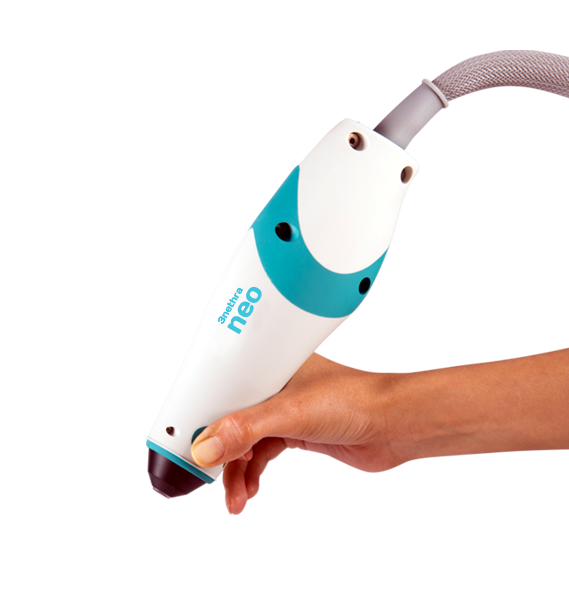

An ergonomically designed, lightweight hand piece allows for single-handed operation, and captures 120° high-resolution images of the posterior and anterior segments of the eye.

The contact device is easily operated by qualified clinicians and can be deployed in versatile clinical environment such as hospitals, operating rooms, and Neonatal Intensive Care Units (NICU).

Key benefits
  • Portable and compact
  • Wide-field Retinal Imaging at 120°
  • Intuitive controls
  • Ultra-lightweight handpiece camera
  • LED-based illumination system
  • Pen-holder grasp for easy single-handed operation
  • Windows 10 OS
  • Telemedicine capability including AI for ROP
  • Provides historical data to evaluate disease progress

Technical specifications
Brochures & Manuals
Description & Technical Specs
Camera resolution 2048 x 2048pixels
Minimum pupil diameter 4 mm
FOV 120°, when measured from the centre of the eye
Adjustments Intensity, gain, balance, brightness, contrast, gamma, and focus
Imaging Still images and burst mode images
Compatibility DICOM Export, Telemedicine, USB 3.0
Weight of handheld unit 340 gm (720 gm with cable)
Dimensions of handheld unit 210 mm (L) X 70 mm (W) X 60 mm (H)
Operating environment Temperature: 22–26°C

Humidity: 30–70%

Atmospheric pressure: 70–106 kPa

Altitude: 0–2000 meters

Power Supply Input: AC 100- 240V, 50/60 Hz

(for DC power adapter 5V/5A)

Minimum system requirements The software will work on MS Windows 10 having a 64-bit OS or Pro with i3 Processor of 8th Generation or above. A turbo booster of upto 3.3 Ghz, a minimum of 8GB RAM, and hard disk space of 500 GB or more is required. A full HD display 1920 X 1080 resolution and at least two USB 3.0 ports are needed. Forus Health recommends using a CE-marked laptop or desktop. For international markets, the Windows OS Pro version is recommended
