Optopol
REVO FC130
Fundus Camera
130,000 A-scans a second. The unique, fully automated integrated non-mydriatic 12.3 megapixels Fundus Camera with AccuTrack – Real Time software eye-tracking.
Delivering beyond the expectations of a modern OCT
The REVO FC 130 includes a high-quality built-in 12.3 MP camera and a wide range of applications.
An all-in-one OCT with true colour fundus imaging and hardware eye-tracking, it offers versatility for time and space efficiency.
REVO FC130 features:
- biometry device with IOL calculations.
- topography
- anterior segment imaging
- high-quality OCT imaging including OCT-A.
- combined OCT and fundus images.
Fundus Camera
- Full-colour up to 45°.
- Suitable for diabetic retinopathy screening.
- Colour fundus image capture is possible with a pupil as small as 3.3mm.
- Easy-to-use fundus image processing tools deliver a stunning retinal image.
- Chronological comparison of the fundus photo.

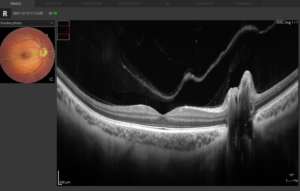

- Link a single fundus photo to several OCT scans.
- IR fundus preview and photo capture settings are adjusted automatically.
A truly unique solution
- Easy to use image processing tools such as RGB channel, brightness, contrast, gamma and sharpness adjusters used with filters deliver a stunning retinal image.

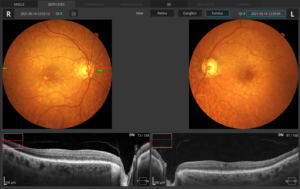

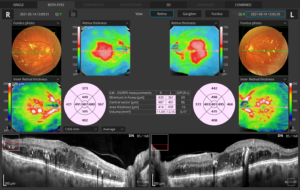

- Available view modes present detailed photos of a single or both eyes as well as a time comparison of fundus photos.
Download
Technical specifications
Brochures & Manuals
Description & Technical Specs
REVO FC130
FUNDUS CAMERA |
|
Type |
Non-mydriatic fundus camera |
Photography type |
Colour |
Angle of view |
45° ± 5% or less |
Min. pupil size for fundus |
3.3 mm or more |
Camera |
12.3 Megapixel CCD camera |
CAMERA MODES |
|
Photography |
Fundus (Retina, Central, Disc, Manual fixation), Anterior photo, |
Flash adjustment, Gain, Exposure |
Auto, Manual |
Intensity levels |
High, Normal, Low |
OPTICAL COHERENCE TOMOGRAPHY |
|
Technology |
Spectral Domain OCT
|
Light Source |
SLED, Wavelength 850 nm |
Bandwidth |
50 nm half bandwidth |
Scanning speed |
130 000 measurements per second |
Axial resolution |
2.8 μm digital, 6 μm in tissue |
Transverse Resolution |
12 μm, typical 18 μm |
Overall scan depth |
2.8 mm / ~6 mm in Full Range mode |
Min. pupil size for OCT |
2.4 mm |
Focus adjustment range |
-25 D to +25 D |
Scan range |
Posterior 5 mm to 15 mm, Angio 3 mm to 12 mm, Anterior 3 mm to 18 mm |
Scan types |
3D, Angio*, Full Range Radial, Full Range B-scan, Radial (HD), B-scan (HD), Raster (HD), Cross (HD), TOPO, AL |
Fundus alignment |
Live Fundus Reconstruction |
Alignment method |
Fully automatic, Automatic, Manual |
Fundus Tracking |
Accutrack – active real time , iTracking |
Retina analysis |
Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness |
Angiography OCTan optional software module to purchase |
Vitreous, Retina, Choroid, Superfi cial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, FAZ, VFA, NFA, Quantifi cation: Vessel Area Density, Skeleton Area Density, Thickness map |
Glaucoma analysis |
RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL, Structure + Function |
Angiography mosaic |
Acquisition method: Auto, Manual Mosaic modes: 10 x 6 mm, Manual up to 12 images |
Biometry OCTan optional software module to purchase |
AL, CCT, ACD, LT, P, WTW IOL Formulas: Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II |
Corneal Topography Mapan optional software module to purchase |
Axial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index) |
AnteriorNo adapter required even for wide scans e.g. Angle to Angle |
Anterior Chamber Radial, Anterior Chamber B-scan, Pachymetry, Epithelium map, Stroma map, Angle Assessment, AIOP, AOD 500/750, TISA 500/750, Angle to Angle view, Wide Angle, Wide Cornea |
Connectivity |
DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking |
Fixation target |
OLED display (The target shape and position can be changed), External fixation arm |
Dimensions (LxWxH) / Weight |
479 × 367 × 493 mm / 30 kg |
Power supply / consumption |
100-240 V, 50/60 Hz / 90-110 VA |
Optopol reserves the right to modify the product or product features at all times without notification.
