Ophtec Horizon monofocal
Horizon Monofocal is a hydrophobic acrylic IOL designed for aphakia correction in standard cataract procedures.
Horizon is a one-piece IOL for in-the-bag fixation. Built on an ultrathin platform with advanced material technology, it combines efficient handling with high optical quality and predictable outcomes. Its balanced design makes it particularly suitable for routine cataract cases where consistency, efficiency, and reliability are essential.

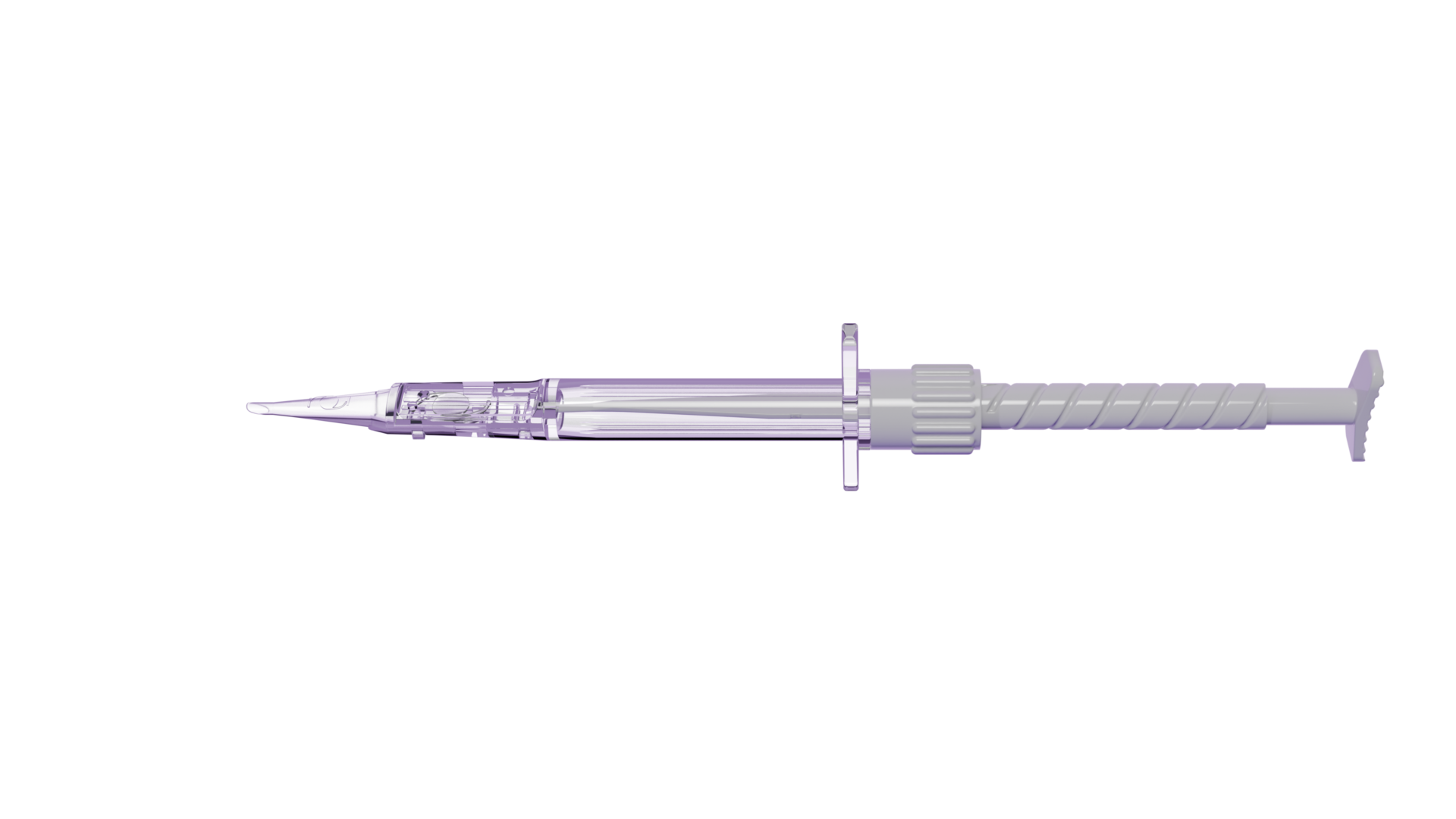

PRELOADED INJECTOR SYSTEM
All Horizon IOLs are designed for easy implantation with the preloaded injector system. The preloaded injector is easy to use. Its design enables precise control during lens delivery and ensures smooth implantation. Built for safety and reliability, it provides surgeons with confidence in everyday cataract surgery.
Safe Procedures
- Ultrathin hydrophobic acrylic material
- Glistening-free technology
- Square-edge design
Efficient Surgeries
- Designed for smooth and predictable implantation
- Combines ultrathin optics, dedicated surface treatments on optic and haptics
- Fully preloaded injector system for smooth handling and minimal manipulation
Excellent Visual Quality
- An optimised balance of refractive index and Abbe number enables an ultrathin design with strong optical performance
- A matt-treated optic edge helps reduce peripheral dysphotopsias, supporting excellent visual quality
Download
Images
Technical specifications
Brochures & Manuals
Description & Technical Specs
Ophtec Horizon
| Model | RS60AP-22 RS60AP-26 |
| Fixation | In the capsular bag |
| Optic type | Aspheric Aberration Negative (- 0.2 μm) |
| Refractive index | 1.54 |
| Abbe number | 42.5 |
| Optic powers | 0.0 D to +34.0 D
(Biconvex, 0.5 D increments) |
| Haptic configuration | Modified L-Loop with matting treatment |
| Lens material | Hydrophobic acrylic |
| Water content | < 1% |
| Lens colour | Clear |
| Body Ø | 6.0 mm |
| Overall Ø | 13 mm |
| Haptic angle | 0° |
| Incision size | ~ 2.2 mm for ≤ 26 D ~ 2.6 mm for > 26 D |
| A-constant Ultrasound | 119.4 (SRK T) / 119.6 (SRK II) 1.68 (Haigis a0) / 0.4 (Haigis a1) / 0.1 (Haigis a2) 5.78 (Hoffer Q pACD) / 2.01 (Holladay sf) 5.73 (Holladay 2) / 2.09 (Barrett II LF) |
| A-constant Optical | 119.64 (SRK T) / 120.56 (SRK II) 1.948 (Haigis a0) / 0.4 (Haigis a1) / 0.1 (Haigis a2) 6.09 (Hoffer Q pACD) / 2.32 (Holladay sf) 5.62 (Holladay II) / 2.22 (Barrett II LF) |
