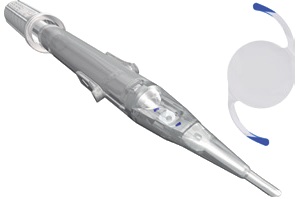

Hoya iSert® 254 Preloaded IOL
(clear)

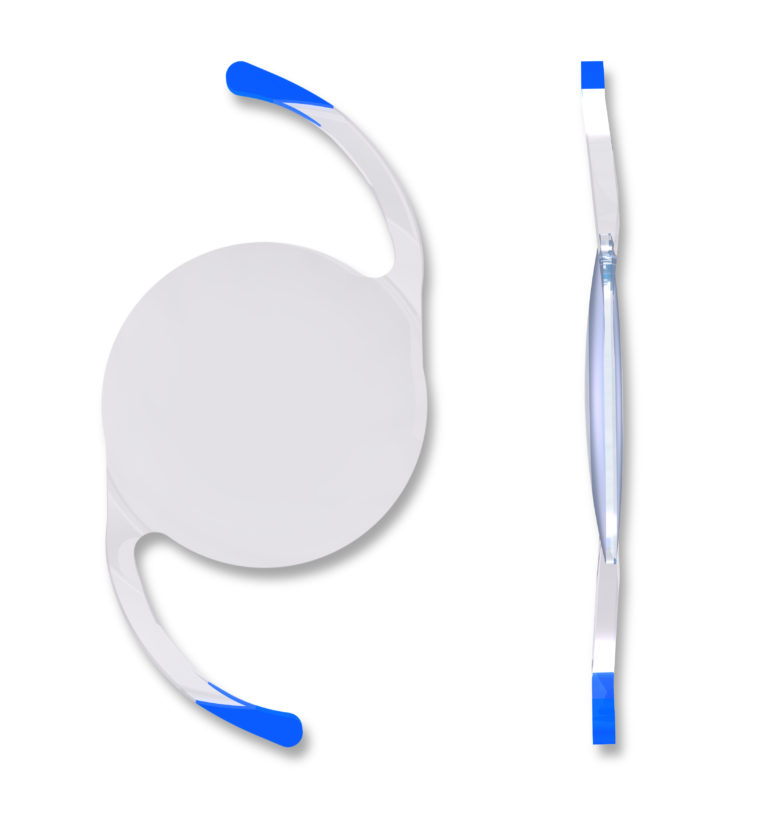

Fully preloaded 100% hydrophobic aspheric 1 piece IOL
Simple, fast, predictable

HOYA iSert® delivers a faster average IOL delivery time than manually loaded IOL delivery systems.

Improves efficiency and productivity

Preloaded features streamline operating procedures and optimise clinical efficiencies.

Sharp optic edge

Proven ABC Design of optic provides patients with a sharp visual image. The square edge helps to minimise posterior capsule opacification (PCO).

Simple and superior injector

Simple and superior ease of use of the injector, through a small 2.2mm incision.

Proven hydrophobic IOL material

Over 10 million IOLs sold worldwide over 15 years.

HOYA iSert® application

Download
Technical specifications
Description & Technical Specs
Preloaded, Monoblock, Aspheric,  UV-absorbing IOL (254)
Model name
iSert® 254
Optic design
Aspheric lens design, aberration correcting
Specification
UV filter
Optic material
Hydrophobic Acrylic (AF-1)
Manufacturing
Lathe-cut and pad polished
Haptic material
Hydrophobic acrylic with blue PMMA chemically bonded haptics tips
Haptic Configuration
Modified-C loop, 5° angulation
Diameter (optic/OAL)
6.0 mm/12.5 mm
Power
+6.0 to +30.0 D (0.5 D steps)
Nominal A-constant
118.4
Injector
iSert® Preloaded IOL System
Front injector tip outer diameter
1.78mm
Optimised constants
Haigis a0 = -0.542 a1 = 0.161 a2 = 0.204
Hoffer Q pACD = 5.30
Holladay 1 sf = 1.52
SRK/T A = 118.5
SRK II A = 118.8
Front injector tip outer
1.78 mm
Injector
iSert® preloaded

The mentioned A-Constant is presented as a guideline only for lens power calculations. It is recommended that the A-Constant measurement be customized based on the surgeon’s experience and measuring equipment.

Optimised Optical constants Source: http://ocusoft.de/ulib/c1.htm (as of Oct. 31, 2016)
