Home Monofocal IOLs HOYA iSert PY-60AD (yellow)

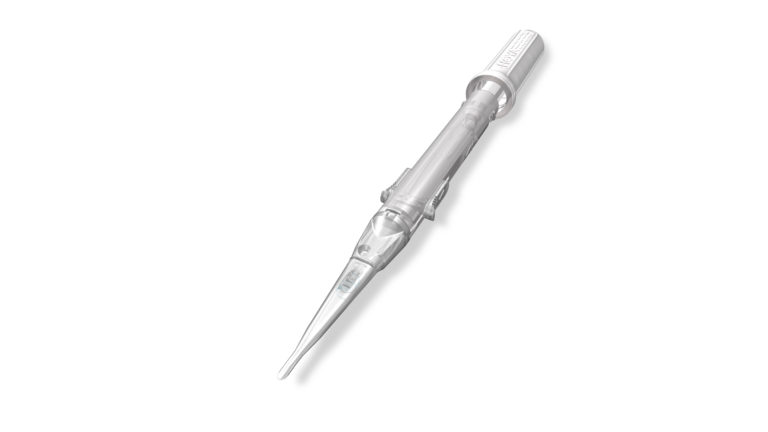

HOYA PY60-AD (yellow) HOYA iSert PC-60AD injector

HOYA iSert®
PY-60AD Aspheric Yellow IOL

Aspheric 3-Piece IOL. Hydrophobic Acrylic.
HOYA iSert PY-60AD hydrophobic IOL

Proved 100% hydrophobic acrylic pre-loaded three piece IOL. Over 10 million IOLs implanted worldwide over 15 years.

Simple and superior

Simple and superior ease of use of the injector, through a small incision.

Sharp optic edge

Designed to reduce posterior capsule opacification (PCO).

Fully preloaded delivery system

The HOYA iSert® reusable injector frees up clinical time.

Download
Technical specifications
Description & Technical Specs

HOYA iSert® PY-60AD

Specification
UV and blue light filter
Optic material
Hydrophobic acrylic (AF-1)
Optic design
Aspheric lens design, aberration correcting
Manufacturing
Lathe-cut and tumble polished
Haptic material
Blue PMMA chemically bonded
Haptic Configuration
Modified C-loop,
5° angulation
Diameter (optic/OAL)
6.0 mm/12.5 mm
Power
+6.0 to +30.0 D (0.5 D steps)
Nominal A-constant
118.4
Optimised constants
Haigis a0 = -0.093
a1 = -0.023, a2 = 0.208
Hoffer Q pACD = 5.30
Holladay 1 sf = 1.54
SRK/TA = 118.6
SRK II A = 118.8
Front injector tip outer diameter
1.89mm
Injector
iSert® Preloaded IOL System

The mentioned A-Constant is presented as a guideline only for lens power calculations. It is recommended that the A-Constant measurement be customised based on the surgeon’s experience and measuring equipment.
